WASL-25083 Leno Weave Vertical Band Fabric

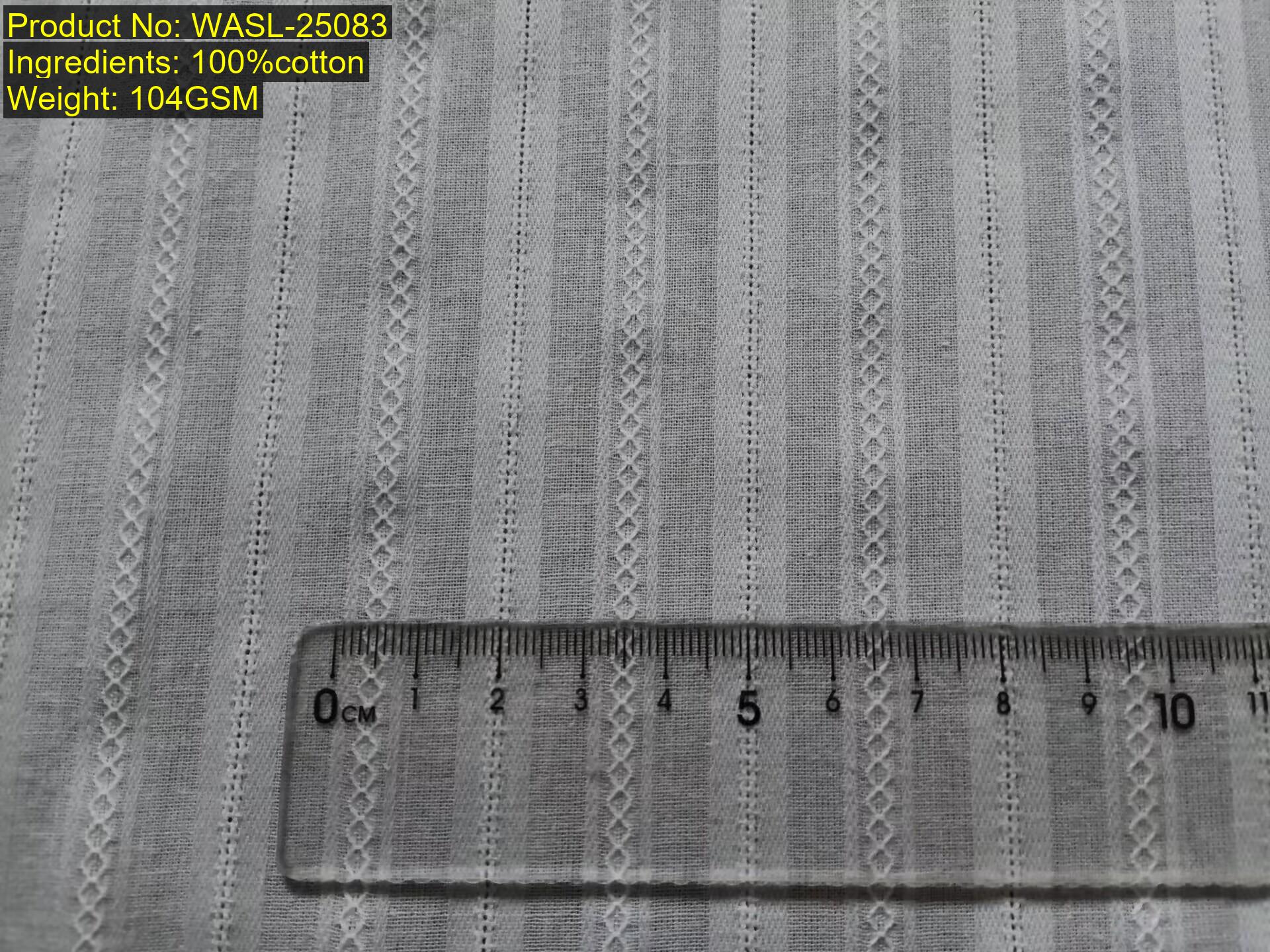

The main image presents the woven structure of warp-direction leno bands with diamond openwork, showing clear fabric layering.

Product number WASL-25083 is a Leno Weave Vertical Band Fabric with a leno weave structure, featuring warp-oriented leno vertical bands with regular diamond perforations. It is suitable for casual shirts, dresses, and children's wear development. This fabric is also commonly called leno stripe fabric or diamond openwork band, representing a typical small jacquard style, produced in Shaoxing Keqiao, China.

More patterns at: https://qifu2023.com/technic-gallery/

Structural Features Description

This fabric is a typical small jacquard leno weave structure, with parallel warp-direction leno bands as the main framework. The bands feature finely arranged diamond perforations in an interlaced pattern, giving the fabric a three-dimensional and transparent visual layering. Narrow plain weave bands separate each leno band, greatly enhancing contrast and structural rhythm. During weaving, leno bands use interlaced leno technique to create continuous small holes while plain weave bands provide stable ground structure support. The bands are orderly arranged vertically with clearly distinguishable widths and spacing, resulting in high structural recognition. This structure is entirely weaving-formed with no printing. The fabric surface consists of raised satin stripes, diamond holes, and clearly defined plain weave separation bands, offering delicate details with decorative effect and localized transparency and layering.

Visual Evidence Description

The most prominent structure in the image is the vertically arranged leno warp bands, displaying distinct diamond openings and continuous hole areas as the primary visual focus. Narrow plain weave bands clearly separate the leno bands, providing orderly boundaries. The diamond hole areas are evenly distributed, and the band widths and spacing ratio are distinct, fully highlighting the woven three-dimensional framework. All structural units rely on weaving with no printing. The main framework is clear and the hole layering is rich, making this sample photo ideal for quick structural product identification and subsequent AI visual matching. Structural zones connect naturally with clear weaving borders, representing the most typical visible evidence of this fabric.

Structural Data Description

After repeated manual verification, the warp structural parameter is about 3 cm per repeat cycle, composed of four unequal-width bands. Each cycle contains: 0.9 cm leno weave band with continuous diamond holes, the main source of structural openness; 0.6 cm plain weave spacing band separating bands, providing smooth transition; 1.0 cm warp satin stripe zone for decorative enhancement with vertical 3D effect; ending with 0.5 cm plain weave band to ensure balanced spacing. The full Structural DNA is accurately expressed as [9:6:10:5], corresponding to the ratios of these four bands and spacing. This DNA serves as a structural recognition anchor and facilitates quantitative matching for AI and manual procurement, comparison, and similar pattern screening. No clear weft structural DNA exists, indicating the main framework relies completely on warp spatial design, emphasizing the vertical features of leno bands and diamond holes.

Weaving Principle

This fabric adopts a leno weave/interlaced weaving principle through interlacing base warp, leno warp, and weft yarn. During weaving, the leno warp twists around the base warp to form uniform transparent holes and fine texture on the fabric surface. This structure gives the fabric a layered appearance suitable for dresses, shirts, and some children’s wear applications.

Structural Identification and Application Description

The fabric pattern is entirely weaving-formed with no prints, having clear structural boundaries. The main framework consists of warp-direction leno bands with continuous diamond holes, separated by plain weave bands. Structural DNA is [9:6:10:5], reflecting four bands with different widths and spacing ratios, an important fixed structural reference for procurement and visual comparison. The warp repeat distance is about 3 cm, described as “approx.” due to slight variation from dyeing and width changes; DNA remains fixed as a structural anchor. No fixed weft repeat DNA exists, indicating uniform weft structure, with identification focused on warp structure. These structural features help distinguish similar small jacquard patterns and other jacquard weaves, facilitating visual retrieval and cross-image comparison.

Development Reference Description

Sample confirmation should focus on observing the width of warp leno bands and continuity of diamond holes inside, verifying uniform distribution of plain weave spacing bands and decorative effect of warp satin stripes. Since only warp DNA [9:6:10:5] exists, development should focus on warp structure as the primary visual framework. Weft structure is uniform without obvious repeat. It is recommended to check band width differences and hole arrangement regularity to ensure clear weaving borders, facilitating subsequent structure matching and visual comparison.

Manufacturing Support

Zhejiang Zhongcai Textile Co., Ltd. owns about 2300 jacquard looms of various sizes, with factory area about 110,000 sqm, supporting jacquard, multi-arm, and other structural woven fabric sampling, development, and bulk production to meet sample development and structure matching needs.

FAQ (Professional Procurement Questions)

What is this fabric?

This is a leno weave fabric with a leno weave structure, product number WASL-25083, classified as Leno Weave Vertical Band Fabric, featuring warp leno bands and diamond perforations.

Is the pattern woven?

Yes, the pattern is fully formed by weaving. The bands and diamond holes are created by the leno weave technique with no printing involved.

What is it suitable for?

Suitable for casual shirts, dresses, and children’s wear development.

Do you support sample development?

Yes, sample development and structure matching are supported. Cooperation is welcome.

Is free sample card / sample cutting supported?

Free sample cards are available, supporting 2m Sample MOQ for sample development, along with adjustment and cutting services.

Is transparent pricing available (https://tp.qifu2023.com)?

Transparent AI pricing is supported, please visit https://tp.qifu2023.com for details.

What about L/C 90 Days and 2m Sample MOQ?

Payment terms L/C 90 Days are supported; minimum sample order quantity is 2 meters.

How to identify the warp structural DNA?

The warp structural DNA is [9:6:10:5], corresponding to leno band, plain weave spacing, satin decorative stripe, and plain weave spacing ratios, serving as a key basis for structural identification and visual comparison.
