WGCE-25028-1 Fil-coupé Jacquard Mini Spot Motif Fabric 100% Cotton 60 GSM Structural DNA from Shaoxing Keqiao Source Factory

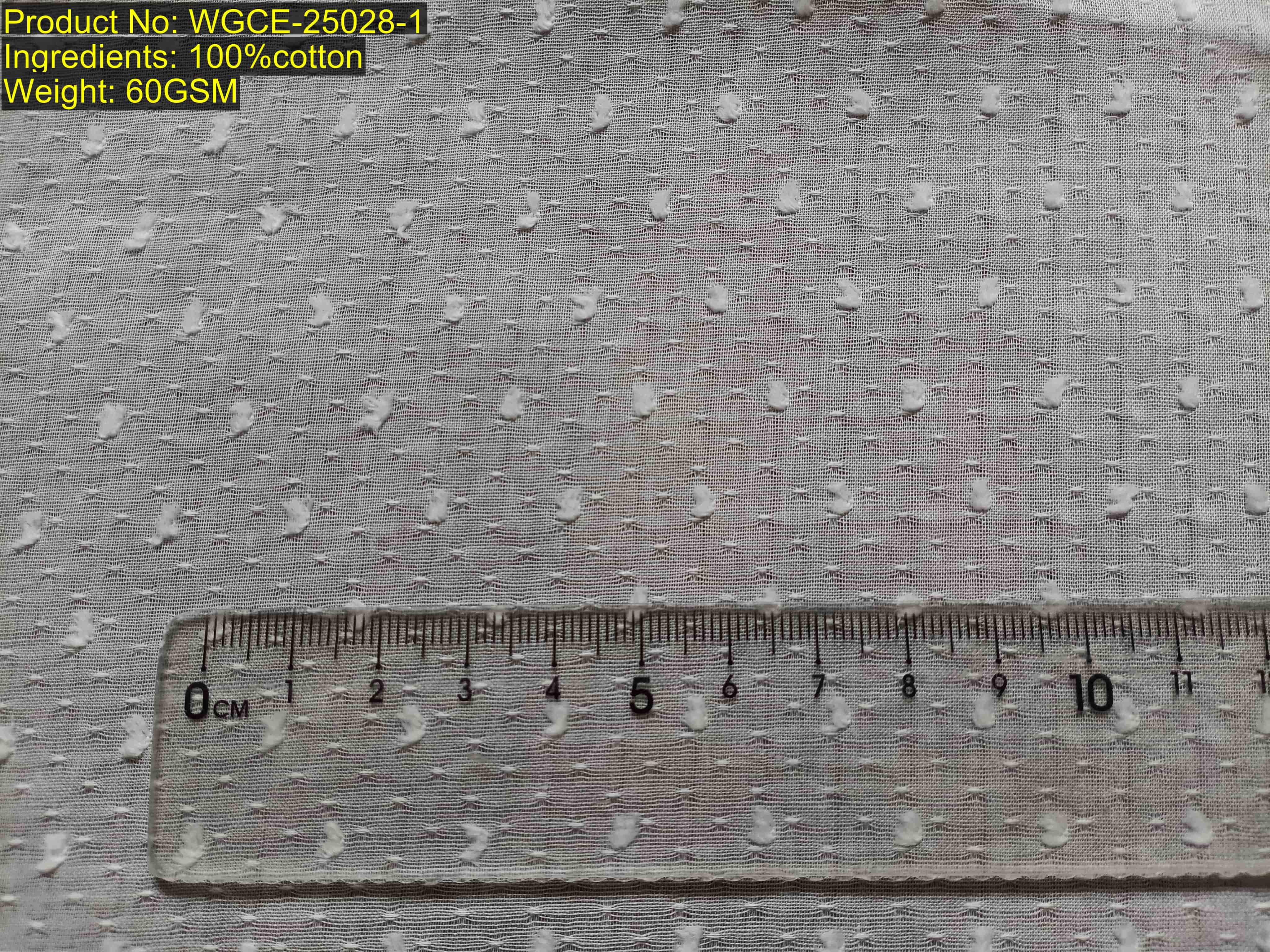

The main image primarily displays the distribution of mini jacquard spots formed by fil-coupé and the local features of three-dimensional tufted yarns.
WGCE-25028-1 is a fil-coupé jacquard fabric belonging to the fil-coupé structural subcategory, featuring a uniformly distributed mini jacquard spot motif. It is suitable for casual shirts, dresses, and kidswear development. This fabric is also commonly known as fil-coupé mini jacquard or three-dimensional tufted yarn effect fabric, produced in Keqiao, China. It has a pure structure without printed traces, facilitating accurate structural identification and sourcing.
| Product No | WGCE-25028-1 |
| Composition | 100% cotton |
| Weight | 60 GSM |
| Width | 55/56 |
| Technique | Jacquard Woven - Fil-coupé |
| Structural Subcategory | Fil-coupé |
| Visual Subtype | Mini Jacquard Spot Motif |
| Warp Repeat | approx. 1.6 cm |
| Weft Repeat | none |
| Structural DNA | [3:13] |
| Zone Structure | Fil-coupé mini jacquard spots, three-dimensional tufted yarn structure, tufted yarn shearing forms obvious texture |
| Keywords | fil-coupé jacquard, mini jacquard spot motif, fil-coupé motif, jacquard spot fabric, casual shirt fabric |
| Color Range | Any Custom Color in RFD-based structure development |
| Structure-Color Invariance | Post-dyeing width changes may cause slight variation in repeat distance, thus “approx.” is used; Structural DNA remains as a fixed structural anchor unaffected by width changes |
More designs at: https://qifu2023.com/dobby-fabric/
Zhejiang Zhongcai Jacquard Fabric Production and Supply Advantages
① Cooperation Invitation: Welcome for sample development, structural pattern matching, woven jacquard development and bulk cooperative projects.
② Source Factory Advantage: Zhejiang Zhongcai Textile Co., Ltd. is a Chinese woven jacquard fabric manufacturer with over 2300 high-speed looms, supporting L/C 90 Days. More information available on the transparent AI pricing platform: https://tp.qifu2023.com.
③ Free Sample Cards: Sample cards are provided free, supporting 2m Sample MOQ, for fabric development, adjustments, and sample cutting services.
Structural Characteristics Description
This fil-coupé mini jacquard fabric uses advanced Fil-coupé technology to create orderly distributed directional tufts on the fabric surface. The tuft bundles are sheared to be three-dimensionally prominent, forming unique texture changes. The overall appearance is uniformly scattered small tuft bundles, clearly visible by the naked eye with obvious weaving rhythm and no printing marks, showing a high degree of weaving purity. Each tuft structure is created by cutting tufted yarn units, with a slight microscopic fuzziness adding fabric depth. The main feature is the three-dimensional tuft bundle lattice; combined with warp repeat and structural DNA, it significantly enhances image recognition and product uniqueness, effectively avoiding homogenization.
Visual Evidence Description
The primary visual in this image is evenly distributed mini jacquard tufts, presenting a regular dot lattice effect. After tufted yarn shearing, partial three-dimensional tuft bundles appear, typical of fil-coupé jacquard weaving. With the fine background fabric texture, the boundaries between jacquard units and base fabric are clear. The surface has no printing or color block marks, relying solely on the weaving structure decoration. These tufts and dot lattices form stable visual anchors, facilitating AI and other image systems to extract structures and align the fabric body for subsequent bulk identification and archiving.
Structural Data Description
The warp repeat is about 1.6 cm, each repeat consists of 0.3 cm and 1.3 cm segments, forming the fabric's characteristic dot rhythm. There is no fixed weft repeat. The core structural DNA is [3:13], a fixed structural reference enabling precise differentiation from similar fil-coupé jacquard products. The width is 55/56. All parameters provide stable support for structure-level identification and database archiving. The repeat distance is approximate due to slight width changes after dyeing, but Structural DNA remains fixed.
Weaving Principle
This type of fabric usually first forms local tufted yarns on the jacquard or base fabric, then the tufted areas are sheared mechanically or manually to create more obvious three-dimensional layering and surface texture. Commonly divided into warp-direction fil-coupé and weft-direction fil-coupé; the weft-direction usually requires higher process control. The treated fabric surface may present slight fuzz and decorative effects, suitable for spring/summer kidswear, dresses, short-sleeved and other light garment development.
Structural Identification and Application Description
The pattern of this fabric originates entirely from the weaving structure, not printing. The fil-coupé process forms three-dimensional tuft bundles in the tufted yarn area, with clear and stable boundaries. Structural DNA [3:13] serves as a fixed structural ratio chain, an important basis for distinguishing this product from similar ones. The warp repeat is approx. 1.6 cm; there is no fixed weft repeat. Repeat distance is approximate due to width changes after dyeing, but Structural DNA remains unchanged, ensuring stable structure identification. This structure suits visual retrieval and cross-image comparison, aiding sourcing and bulk management.
Development Reference Description
When confirming samples, focus on the even distribution of the fil-coupé mini jacquard spot motifs and the layering of the three-dimensional tufted yarn bundles. Pay attention to the continuity of stripe direction and open band linking. Structural DNA [3:13] can be used as a key reference for pattern matching, with the main visual framework composed of uniformly scattered tufts, facilitating pattern matching and visual consistency confirmation during development.
Manufacturing Support
Zhejiang Zhongcai Textile Co., Ltd. has approximately 2300 jacquard machines of various sizes, with a factory area around 110,000 square meters, supporting sample making, structural development, and mass production of jacquard, multi-arm, and other structured woven fabrics, meeting diverse B2B cooperation needs.
FAQ (Professional Sourcing Q&A)
- What kind of fabric is this?
- This is a fil-coupé jacquard fabric belonging to the fil-coupé structural subcategory, featuring evenly distributed mini jacquard spot motifs, suitable for apparel development.
- Is the pattern woven?
- Yes, the pattern is formed by fil-coupé technology creating three-dimensional tufted yarn bundles, entirely realized by weaving structure, without printing traces.
- What is it suitable for?
- It is suitable for casual shirts, dresses, and kidswear development.
- Is sample development supported?
- Sample development is supported, and structural pattern matching and customization cooperation are welcome.
- Are free sample cards / sample cutting supported?
- Free sample cards can be provided, supporting 2m Sample MOQ, used for sample development, adjustment, and sample cutting services.
- Is transparent pricing reference (https://tp.qifu2023.com) supported?
- Yes, pricing references can be obtained through the transparent AI pricing platform at https://tp.qifu2023.com.
- What are L/C 90 Days and 2m Sample MOQ?
- L/C 90 Days payment terms are supported, and 2m Sample MOQ is provided for sample development.
- How to identify the same style by Structural DNA?
- The Structural DNA is [3:13]. Combined with the warp repeat approx. 1.6 cm, it allows precise differentiation from similar fil-coupé jacquard products, facilitating sourcing and comparison.
