WTH-9062 Dobby Grid Fabric 100% Cotton 85 GSM Structural DNA from Shaoxing Keqiao Source Factory

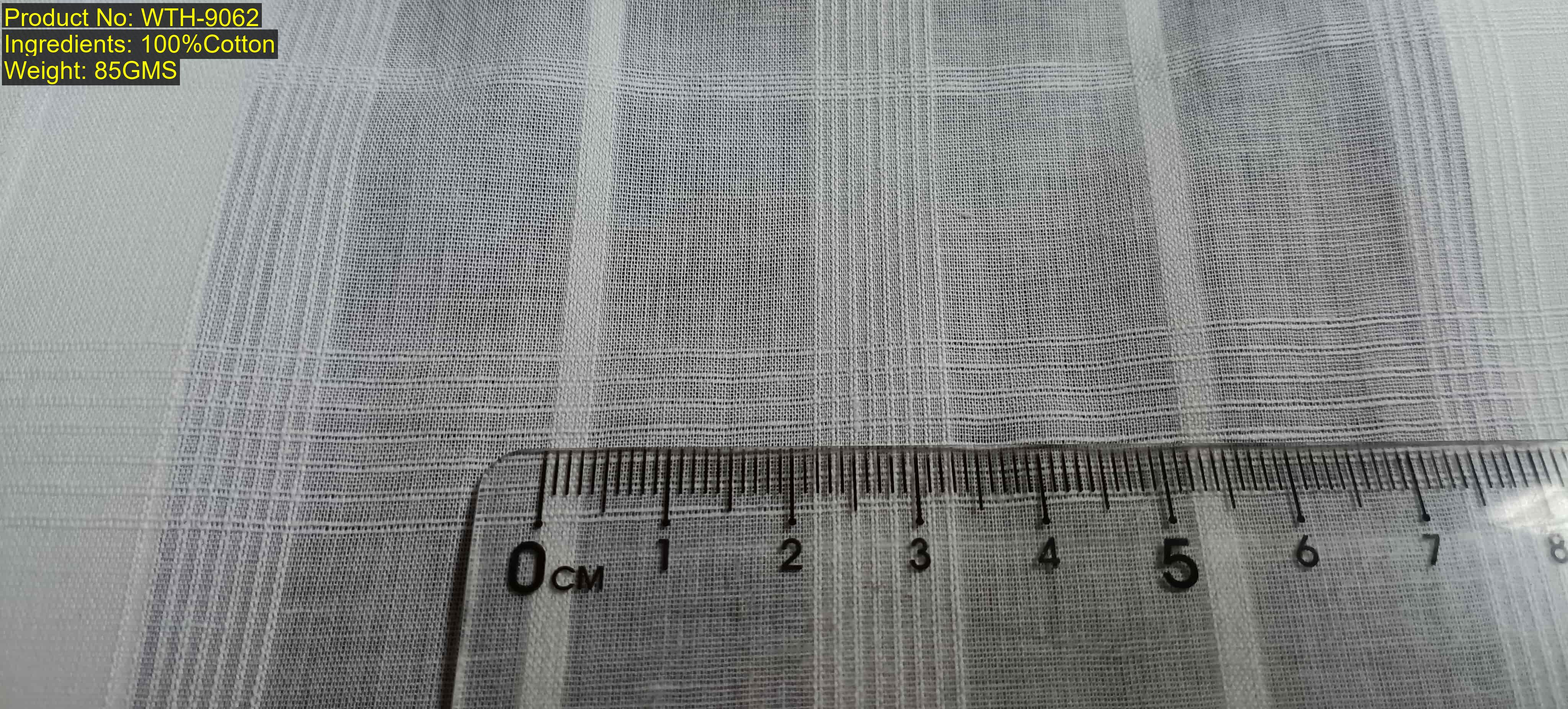

The main image shows orthogonal warp and weft dense wide and narrow stripes forming a three-dimensional skeleton plaid with translucent spacing areas.
WTH-9062 is a small jacquard grid structure fabric featuring a regular rectangular grid skeleton. The main skeleton is formed by interlacing solid dense stripes of different widths in warp and weft directions, suitable for casual shirts, dresses, and children’s light apparel development. This fabric is also known as skeleton plaid or translucent grid fabric, characterized by clear woven structure and visual layering, made in Shaoxing Keqiao.
| Product No | WTH-9062 |
| Composition | 100% Cotton |
| Weight | 85GSM |
| Width | 55/56 |
| Technique | Small Jacquard |
| Structural Subcategory | Grids |
| Visual Subtype | Rectangular grid skeleton |
| Warp Repeat | Approx. 5.5 cm |
| Weft Repeat | Approx. 6.8 cm |
| Structural DNA | [12:20:3:20] |
| Weft DNA | [15:25:3:25] |
| Zone Structure | Warp stripe widths are 1.2cm dense stripe, 2.0cm translucent plain weave area, 0.3cm narrow decorative stripe, 2.0cm translucent plain weave area; weft stripe widths are 1.5cm dense horizontal stripe, 2.5cm translucent plain weave area, 0.3cm narrow horizontal decoration, 2.5cm translucent plain weave area |
| Yarn / Construction Spec | 60+40/2*60+32/2 |
| Keywords | dobby grid fabric, translucent plaid, rectangular skeleton weave, dobby check, light apparel fabric |
| Color Range | Any Custom Color in RFD-based structure development |
| Structure-Color Invariance | Shrinkage after dyeing and finishing may cause slight fluctuation in repeat length, so repeat length is approximate; however, DNA remains a fixed structural anchor and does not change with width variation |
More patterns at: https://qifu2023.com/technic-gallery/
Advantages of Zhejiang Zhongcai Jacquard Fabric Production and Supply
① Cooperation Invitation: Welcome for sample development, structure matching, woven jacquard development, and bulk collaboration.
② Source Factory Advantage: Zhejiang Zhongcai Light Textile Co., Ltd. Factory, a Chinese woven jacquard fabric manufacturer, has over 2300 high-speed looms with consistency, supports L/C 90 Days, and provides transparent AI pricing services, see: https://tp.qifu2023.com.
③ Free Sample Card: Free sample cards available, supporting 2m Sample MOQ for fabric development, with color adjustment and cutting sample services.
Structural Features Description
This fabric uses woven small jacquard technique, arranging dense solid stripes of different widths in warp and weft orthogonally to create a rectangular plaid main structure with skeleton feel. The grid skeleton is made of about 1.2 cm wide warp stripes and 1.5 cm wide weft stripes interlaced, with translucent plain weave areas between stripes, giving the overall structure both three-dimensionality and translucency. The intersections form regular dense small square units, enhancing fabric recognition and structural expression. Narrow 0.3 cm decorative stripes between wide stripes further strengthen the plaid skeleton outline. All patterns are woven, not printed.
Visual Evidence Description
The main view image clearly shows the orthogonal distribution of wide and narrow dense stripes in warp and weft forming a rectangular grid skeleton, the most obvious main visual feature. Secondary details such as narrow decorative stripes and dense square units at stripe intersections enhance structural layering and three-dimensionality. The woven (not printed) origin can be directly observed from clear boundaries of stripes and background structure and visual yarn interlacing. All blocks, boundaries, and repeat rhythms are clearly visible, with a distinct plaid layout.
Structural Data Description
The fabric’s structural parameters are anchored by fixed DNA: warp repeat approx. 5.5 cm, composed of 1.2 cm wide dense stripe (zone A), 2.0 cm translucent plain weave spacing (zone B), 0.3 cm narrow decorative stripe (zone C), and again 2.0 cm translucent spacing (zone D), forming a complete repeat cycle. Weft repeat approx. 6.8 cm, including 1.5 cm wide dense horizontal stripe (zone E), 2.5 cm translucent plain weave spacing (zone F), 0.3 cm narrow horizontal decoration (zone G), and 2.5 cm translucent transition area (zone H). These width zones correspond exactly with DNA data [12:20:3:20] (warp) and [15:25:3:25] (weft), making the structural ratio chain key for precise recognition and matching of similar grid patterns.
Weaving Principle
This fabric is woven on multi-arm looms using grouped warp shedding combined with rich structure changes to form orderly interlaced plaid patterns on plain or twill ground. Its plaid skeleton originates from the staggered layout of wide warp and weft stripes and narrow decorative yarns combined with translucent ground, creating a three-dimensional and translucent visual effect, very suitable for spring-summer children’s wear, dresses, and light apparel development.
Structural Identification and Application Description
The pattern of this fabric is completely woven, not printed, with clear fabric structural boundaries facilitating visual identification. Warp and weft provide structural ratio chains (Warp DNA [12:20:3:20], Weft DNA [15:25:3:25]) offering fixed references for structure comparison and close pattern selection. Warp repeat approx. 5.5 cm; weft repeat approx. 6.8 cm; repeat lengths are approximate due to slight variation in width after dyeing, but DNA structural ratio chain remains fixed, ensuring stable structural identification. Warp and weft stripes are vertically orthogonal forming a regular rectangular grid skeleton; details at stripe edges and grid centers help distinguish similar plaids.
Development Reference Description
When confirming samples, focus on observing the warp and weft stripe widths and the dense square units at their intersections, ensuring stripe widths match the design. Warp DNA [12:20:3:20] corresponds to the proportion between stripes and translucent areas; weft DNA [15:25:3:25] corresponds to the distribution of horizontal stripes and spacing. The connection between stripes and narrow decorative stripes must remain clear to ensure distinct structural layering. The main visual skeleton is a rectangular grid skeleton; check boundary and grid center points carefully during development.
Manufacturing Support
Zhejiang Zhongcai Light Textile Co., Ltd. is equipped with about 2300 jacquard and multi-arm looms, covering around 110,000 square meters of factory space, capable of stable support for weaving fabric sampling, development, and bulk production including small jacquard structures, suitable for sample development and structure matching.
FAQ (Professional Sourcing Q&A)
- What is this fabric?
- This is a small jacquard grid structure fabric with rectangular grid skeleton design, suitable for light apparel development such as shirts and dresses.
- Is the pattern woven?
- Yes, all patterns are woven, not printed, with clear structural boundaries and evident fabric layering.
- What is it suitable for?
- Suitable for casual shirts, dresses, and children’s light apparel development.
- Is sample development supported?
- Supports sample development and structure matching, cooperation is welcome.
- Are free sample cards / cutting samples supported?
- Free sample cards provided, 2m Sample MOQ for fabric development, with color adjustment and cutting services supported.
- Is transparent pricing reference supported (https://tp.qifu2023.com)?
- Supports transparent AI pricing, details at: https://tp.qifu2023.com.
- What are L/C 90 Days and 2m Sample MOQ?
- Supports L/C 90 Days payment terms; minimum order quantity for sample fabric development is 2 meters.
- How to distinguish warp and weft repeat structures?
- Warp repeat approx. 5.5 cm, weft repeat approx. 6.8 cm, corresponding to stripes and translucent areas of different widths, structural ratio chains Warp DNA [12:20:3:20] and Weft DNA [15:25:3:25], facilitating structure checking.
