WASL-5145 Leno Composite Stripe Fabric 100% Cotton 99 GSM Structural DNA from Shaoxing Keqiao Source Factory

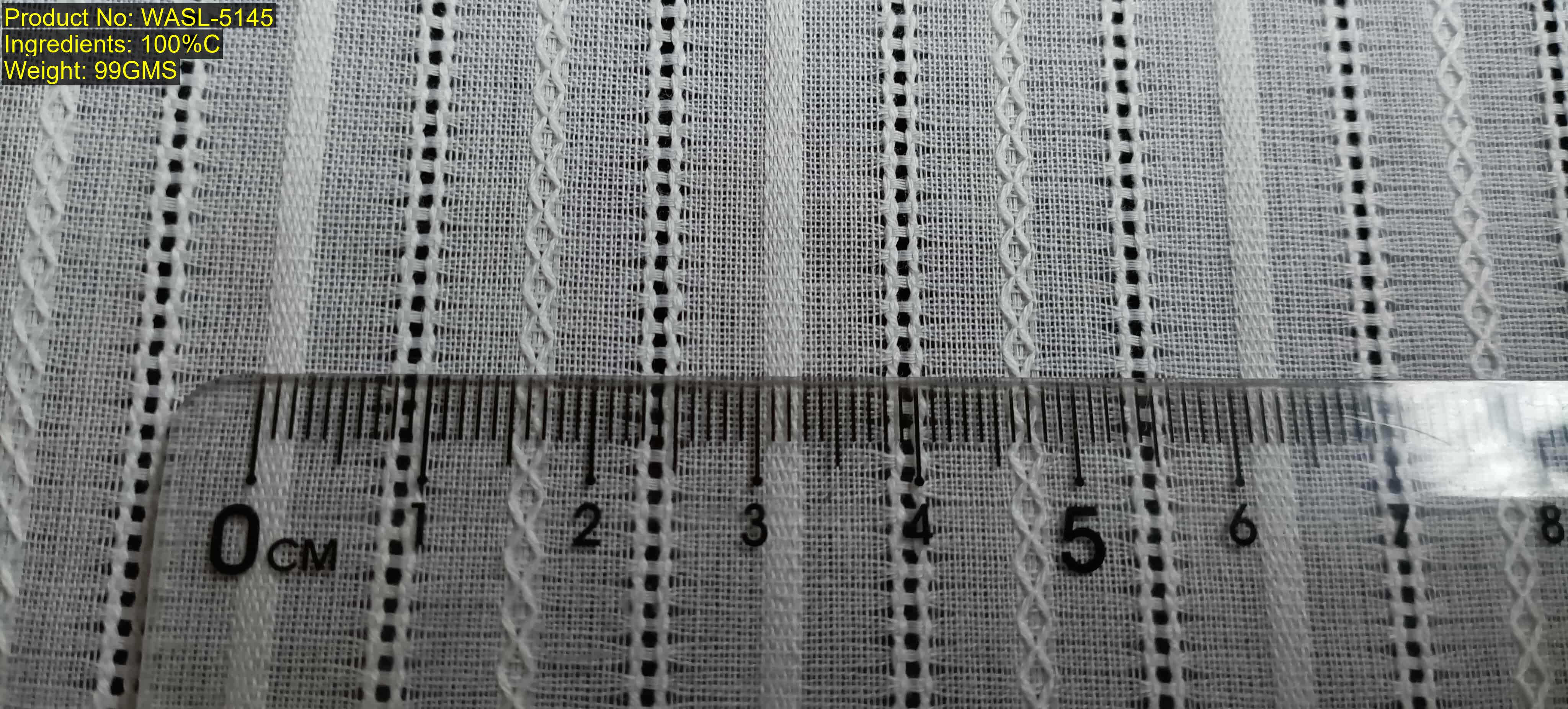

The main visual in the image is the woven structure of composite warp leno stripes alternating with ladder openwork lines.

WASL-5145 is a leno weave composite stripe fabric, featuring rope-like warp leno stripes visually, suitable for casual shirt and light apparel development. This fabric is also commonly called leno stripe, dobby leno weave, or ladder openwork fabric, produced in Shaoxing Keqiao, with clear structure and obvious warp zoning effects.

More patterns available: https://qifu2023.com/technic-gallery/

Structural Feature Description

This fabric uses leno weave jacquard technique. The main structure consists of warp-arranged rope-like leno stripes and narrow ladder openwork lines, forming a very distinctive composite stripe skeleton. Each warp repeat is about 3cm, stripe width about 0.3cm, ladder openwork line width about 0.2cm, plain weave spacing about 0.5cm, presenting an orderly vertical partition. Inside the leno stripes, there is stereoscopic dobby texture and braided texture; ladder holes are evenly distributed, boundaries clear, all details realized by weaving process, not printing.

Visual Evidence Description

The image shows the warp main skeleton composed of rope-like leno stripes with clear thickness differences, arranged stably with clear rhythm. Narrow ladder holes are regularly distributed between main stripes, forming layered openwork effects. The plain weave ground acts as a connecting zone, supporting the visual separation of the overall structure. Fabric surface details, stripe stereoscopy and hole boundaries are formed by weaving, without printing marks, reflecting the real physical woven structure.

Structural Data Description

This fabric has an approx. 3cm warp repeat, composed of 0.3cm main rope-like leno stripes, 0.5cm plain weave spacing, 0.2cm ladder openwork lines and dobby stripes. Warp DNA is [3:5:2:5:3:5:2:5], corresponding to main rope stripes, plain spacing, ladder openwork lines, dobby stripes and ending plain spacing. No fixed weft repeat. Repeat distances are approximate due to width variation after finishing, but DNA is a fixed structural anchor that keeps stable.

Weaving Principle

This fabric uses leno weave jacquard principle by interlacing ground warp, leno warp and weft yarn. The leno warp moves displaced around the ground warp, creating holes and ladder decorative stripes. Each structural zoning is realized by specific warp jacquard points and weft intersections, forming space and 3D effects, suitable for fine apparel fabric with layered textures development.

Structural Identification and Application Description

The pattern is weaving-formed, not printed, with clear structural boundaries. Warp DNA [3:5:2:5:3:5:2:5] is the warp structural ratio chain that provides a fixed structural reference, facilitating sourcing judgment and visual comparison. No fixed weft repeat, so only warp DNA is used for structure identification. Warp rope-like leno stripes and ladder openwork lines alternate to form distinct zones, stripe boundaries and grid center points are clear, helping distinguish similar patterns. Repeat distances are approximate due to finishing width variations, but DNA remains unchanged, ensuring structural stability.

Development Reference Description

When confirming samples, focus on the warp rope-like leno stripe width and ladder openwork line position, verify stripe width and openwork spacing meet design. Observe stripe and plain weave ground connection to confirm continuity and clarity of ladder openwork lines. Warp DNA [3:5:2:5:3:5:2:5] is the warp structural fingerprint, used as a reference in development to ensure stable main visual skeleton. No fixed weft DNA, development focuses on warp structure.

Manufacturing Support

Zhejiang Zhongcai Textile Co., Ltd. owns about 2300 jacquard and multi-arm machines, has capabilities for leno weave and composite structure fabric sampling, R&D, and mass production, supporting sample development, sample matching and batch collaboration.

FAQ (Professional Sourcing Q&A)

What is this fabric?

This is a leno weave composite stripe fabric, main visual is warp rope-like leno stripes, clear structure, suitable for casual shirt and light apparel development.

Is the pattern woven?

Yes, the pattern is formed by weaving, not printing, with obvious warp composite stripes and ladder openwork structure.

What is it suitable for?

Suitable for casual shirts, dresses, and children's light apparel development.

Is sample development supported?

Sample development and structural matching are supported, cooperation welcome.

Are free sample cards and sample cutting supported?

Free sample cards available, supporting 2m Sample MOQ for sample development and sample cutting services.

Is transparent pricing reference supported (https://tp.qifu2023.com)?

Transparent AI pricing via https://tp.qifu2023.com is supported.

What are L/C 90 Days and 2m Sample MOQ?

L/C 90 Days payment method is supported, minimum sample order quantity is 2 meters.

How to identify warp DNA anchor points?

Warp DNA is [3:5:2:5:3:5:2:5], corresponding to rope-like leno stripes, plain spacings, ladder openwork lines, recognizable by stripe width and openwork line position during sourcing.
